Camping 露營

Shally insists on sleeping outdoor. Normal dog house is not her option. The solution is making a tent for her. Believe it or not, she loooove it. She is a "fiber" dog.
雪莉堅持要在戶外過夜，現在天氣蠻冷的，她又不喜歡一般的狗屋，解決的辦法是在院子的角落搭了一個帳篷。結果雪莉超愛睡在柔軟的帳篷中，她真是一隻「纖維」狗！

電腦提花研習基礎班第一班已經額滿

電腦提花研習基礎班第一班已經額滿，有興趣者第二班尚有兩個名額，請把握機會。

電腦提花基礎班報名情況

截至今天早上，電腦提花基礎班目前第一梯次尚有一個名額，第二梯次還剩三個名額，有興趣但尚未決定者請把握機會。

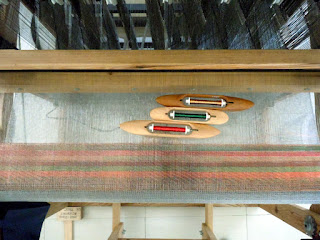

今天織完一個測試，用來做教學用的試片。使用兩個梭子，紅和綠，來表現彩色影像，結果當然是簡化的影像。

There are four opening left for the coming Jacquard workshop. If you are interested in learning to design and weave a Jacquard textile, sign up and join us.

Today a sample for teaching is finished. By using two shuttles (red & green) to create a photo image, the result is quite simplified and stylized.

下面是細節，可以看出兩個不一樣的地方嗎？

Here are the close up of two trials. Can you find the differences between them? I use different weave structures and photoshop one of them with filter.

電腦提花研習課程Jacquard weaving design workshop

電腦輔助提花織物設計 基礎班（一）、（二）

梭織織法中如何創作出圖案，一直是受綜片及踏木數量的限制。當賈卡織機發明後，提花織物設計不再受限於綜片及踏木數量。現今個人電腦、繪圖軟體、電腦提花織機的降價及普及，使得用電腦輔助提花織物設計與創作不再是遙不可及。國立台南藝術大學應用藝術研究所纖維組為推廣電腦提花設計，將於寒假期間開設基礎班，提供一般人士學習的機會。

課程內容：使用專業提花梭織軟體Pointcarré（英文版）處理圖像及作織紋設計，並可立即用電腦提花手織機TC-1織出作品。每位學員可使用一部PC電腦及輪流使用手織機TC-1，或由工讀生協助織作。

每位學員將作包括花緞damask、漸層緞紋、多色緯錦……等織法之試片練習，及完成一件作品（800 picks以內）。除上課時間外，學員可全天候使用設備。

教師：黃文英 國立台南藝術大學應用藝術研究所 專任教師

時間：每班每天6小時課程，（9:00~12:00  2:00~5:00）共30小時。

基礎班（1）2012年1月30日至2月3日

             基礎班（2）2012年2月6日至2月10日

地點：國立台南藝術大學應用藝術研究所 纖維組 視覺館二樓梭織教室

             台南市官田區大崎里66號

學費：每班每人10000元（含材料費）

名額：為達良好的教學效果，每班僅招收8名學員。

報名時間及方式：採傳真報名方式，請註明班別，額滿為止。傳真號碼：06-6930501，報名時間即日起，額滿為止。

報名情況將公佈於部落格http://wenyinghuang.blogspot.com/

主辦單位：國立台南藝術大學應用藝術研究所 纖維組

電腦輔助提花織物設計 基礎班 報名表Application Form

姓名 Name						性別 Sex			出生年 Birth year
聯絡住址 Address
電話或手機號碼 Tel./Mobile
E-mail
職業及服務單位 Occupation
欲報名班別 Course	請勾選 Please check			（1）2012年1月30日至2月3日
				（2）2012年2月6日至2月10日
申請南藝招待所床位 guest housing	是 Yes				否 No
招待所 Room type	雙人雅房 room with shared bathroom			雙人套房 room with bathroom				高級套房 Suite

注意事項：

◎    請傳真此報名表至06-6930501，我們會盡快通知您結果及繳費方法。

◎    住宿方面可申請學校招待所床位或鄰近的新大西拉雅度假飯店，如需申請南藝招待所床位，請事先於報名表註明。

◎    南藝招待所收費說明：雙人雅房（1張雙人床、衛浴同棟共享）800元/日，套房（1張雙人床及1張單人床、獨立衛浴）1200元/日，高級套房（雙人床、獨立衛浴及客廳）1600元/人/日。

◎    學校有一自助餐餐廳提供經濟實惠的三餐，校園內並有統一超商。

◎    因此研習課程必需使用電腦，故學員必需有基本的電腦操作能力。

如有疑問請洽 台南藝術大學應用藝術研究所 纖維組

聯絡電話：06-6930100~2276

台南藝術大學網址：http://www.tnnua.edu.tw/releaseRedirect.do?unitID=1&pageID=3037

應用藝術研究所 纖維組網址：

http://appart.tnnua.edu.tw/appart-c-f-m-m/fiber/index1.htm

新大西拉雅度假飯店, 位於烏山頭水庫內

台南市官田區嘉南里92號,0800-011-399.

http://www.eresort.com.tw/index.asp

藝術市集 Craft Fair

這個週末在南藝有藝術市集，準備了幾件抽象幾何的金屬作品共襄盛舉，歡迎有興趣的朋友來逛逛。
 Tainan National University of the Arts will have craft fair this weekend. This time the fair also has organic food section. I prepare several woven metal works to sell in the fair. Come visit the fair to see more interesting crafts.
Those works are created by dobby software (Weavepoint); but woven on SAMTEX Jacquard hand loom.
The interlacement of warp and weft create structural shape and color which is very different from Jacquard structure. The dobby woven images have inner regulation of the structure.

最近的進度 Recent Progress

This is the recent progress of the flower series which is woven with 100% metal wire.

This warp is finished and the woven fabric was cut to pieces. There are two sizes--30x30 cm and 50x50 cm.

Piles of woven flowers are waiting for finishing. The edges of each are dangerously sharp and very easy to unravel. By stitching to secure the edges and attaching to a plastic board to protect it from damage. Amazingly the finishing process takes much longer time than weaving.

最近的進度是織完這組經線，剪下並裁切成許多片。小的是30公分見方，大的是50公分見方。因為裁剪使得四邊的線容易鬆脫，所以必需手縫固定布邊，然後再固定於空心板上。這些處理過程比織布還費時！

More flowers

 First, test of color combination is woven. Pink flower or red flower, green, blue or brown background?

蝴蝶蘭 Phalaenopsis

The metal threads I use are coated copper or steel. The color palette is limited to few basic colors. The minimal order of one color coated copper is several hundred kilos. Therefore just pick the color that I can find.

目前使用的金屬線有漆包線和彩色不鏽鋼線，能找到的顏色只有這些。漆包線無法訂製色彩，除非你一個顏色需要幾百公斤，所以只好買零頭的線，拿到甚麼顏色就靠運氣。今天　織的蝴蝶蘭是用這些顏色混出來的，並不太真實。

It is challenging to create proper color combination from these colors. Here is today's weaving--Phalaenopsis of imaginative colors.

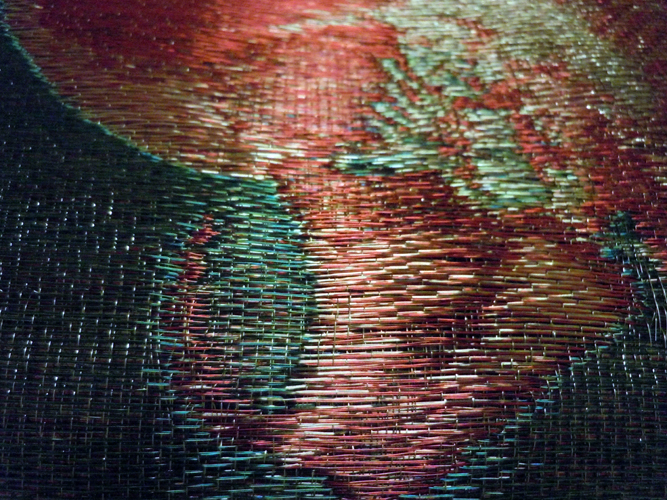

最近金屬線編織的成果 Images of Recent Jacquard Weaving

Here are some images of recent Jacquard weaving. The warp is stainless steel and wefts are coated copper and steel. The result of Hong Kong Orchid is not so satisfying.





Photo of woven metal work is quite different from image through my eyes.



By changing weave structure, weft color and weft density, the result is better.

test of different weft colors



Hong Kong Orchid in progress



A revised Amaryllis





豔紫荊 Hong Kong Orchid

Amaryllis is finished. The three wefts are red, yellow and green. Now it is Hong Kong Orchid. The wefts are magenta, yellow and blue. Instead of green weft, blue is used for purple and green when it mix with yellow or magenta.
孤挺花已經完成，現在是豔紫荊，緯線是洋紅、金黃和寶藍。不直接使用綠色，是因為藍色和黃色及洋紅可以混出紫色和綠色。

孤挺花 Amaryllis

Today a new set of air conditioner is installed. It is closer to the Jacq3G loom and is helpful for cooling the air around the loom. The loom likes cool air and now it will behave well.
今天在Jacq3G提花織布機旁加裝一部冷氣，有助於冷卻織布機旁的空氣，六月裝的冷氣距離較遠，冷房效果較差。提花織布機對溫度實在很敏感，現在應該可以放心了。

You may notice that something new on the loom. It is the first trial of metal warp and weft after the sample blanket (weave structures test) was woven. Since there is no clear idea of my own work now, I just pick a flower image (Amaryllis) to try. Not so satisfied, need to change one weave structure for a better effect. The flower image is from my sister's garden, the color combination is quite cheerful and warm.

I like to weave testing or gift between my series of works. I think the woven floral images will be good gifts.

織布機上面是這兩天織的試作，目前自己的創作尚無明確的作品要織，所以先挑一些花卉的圖片試看看。孤挺花是我妹妹種的，顏色組合蠻喜氣的，但不是非常滿意，其中一個織紋需要調整。通常在系列創作中會穿插一些試驗，金屬材質的花卉圖案蠻適合當禮物送人。

用Jacq3G loom織金屬經、緯線 metal warp on Jacq3G loom

After a long process of warping (winding, tying, adjusting and test weave), a first trial is to weave a sample blanket on metal warp today. The warp density is 30e.p.i. which is rather loose for the warp I use. From the result I find the six different shades of each horizontal block are almost the some look. Because the steel warp which works as white warp is too fine, therefore a weft dominate weave structures will be more suitable.
Seven color effects are created from three wefts. Two shades (the warp-face and weft-face) of each are usable. Fourteen weaves can be used for this sample blanket.
This is the first time to weave a metal warp on Jacq3G loom. I am so nervous because the loom seems work very hard on lifting the warp.

漫長的整經過程終於完成，包含捲線、綁線、穿筘，還要測試並調整織布機，今天終於織了三色緯線複合織法的色票。出來的結果是每一色的明暗層次分不出來，僅有最顯經和最顯緯的兩個層次勉強可以分出來。三色緯線交織出七個有用的色彩，每個色有兩個明暗層次，也就是有十四個效果可用。
今天是第一次用Jacq3G loom織金屬經、緯線，織布機似乎很費力地提綜，織作時令人非常緊張。

暑假結束 The end of summer

Last month I wove several scarfs. Some of them are "sample" scarf which are cluster of samples for teaching. The material of this one is 100% cashmere bought from China. The fabric did not change a bit after washing (fulling)! This is really strange. Is it really natural fiber?

暑假結束前把大多臂織布機上的黑經線織完，織了幾條試片圍巾。這條圍巾的材質是購自大陸的羊絨﹝開斯米爾﹞，是很昂貴的毛料；但是下機水洗後，竟然絲毫沒有縮絨的跡象！難道是化學纖維嗎？想到還有一大堆這種線，還花了很多錢，就很嘔。

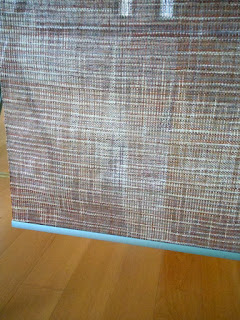

The trial of paper yarn divider is woven and finished with parts from Ikea. This is the look of the bottom part.

紙線試作隔簾完成一片，掛起來有遮蔽但又透光的效果。

The paper yarn is bought from a hand weaving company many years ago. The company was specialized in weaving kimono fabric and obi. This is the close up of the fabric. It has nice crisp texture.

紙線材質是十多年前購自一家手織和服布料及腰帶的公司，織成的布有挺括的質感。

After finishing the black warp of the big dobby loom, I start to do the warping of my Jacq3G. This time is stainless steel warp. Now I have three kinds of cone rack for different type of cone. The right one is a home-made rack for metal thread cone. The center one is for hand wound spools and has horizontal setting. The left one is for half pound cone. The cone is set vertically. At the back there are ladder and a AVL warping wheel which I rarely use.

終於輪到家裡的提花機 ，這次要試不銹鋼經線。間隔整經時需要放置紗線筒的架子，陸續添加後，目前已有三種型態：右邊的線架是自己做的，特別配合金屬線筒紗常見的形狀和尺寸、中間較小的是用來放手捲的紗筒、左邊是請師傅製作的架子，專門放上窄下寬的小紗筒﹝半磅裝﹞。背後是梯子和AVL特有的整經輪。

I need to put some devices to make cross for the warp. This is the first time to use this tension box after sitting in box for four years. Because of the metal thread and the awkward of the tension box, the warping process took longer time than usual.
至於間隔整經很重要的張力盒是冰封四年後首次使用，因為沒有將經線分出八字交叉的裝置，所以加上一些替代的零件來補救。捲金屬線已經很難處理，再加上笨拙的張力盒，使得這次整經非常的緩慢。
